SRF RDF pellets factory. Alternative fuels.

SRF RDF Densification. Pellets from RDF. Pellets from SRF.

Solid Recovered Fuel - SRF - pelleting technology.

Waste to Energy. Zero Waste World.

PRODUCTION MODULES WITH FULL FUNCTIONALITY

Alternative Fuels

Download >>

NPT created a functional modular system for up to 8 and 12 tph capacity. It consist of pelleting, milling and storing modules in 2 different variants.

​

Capacity

​

There are 2 basic modules RS.B with 2 capacities:

  • RS.B1: 6 - 8 tph (640 kW),

  • RS.B2: 9 - 12 tph (960 kW).

​

Both Basic Modules have 2 complementing RS.R modules for milling of feedstock with size above 20 mm.

  • RS.R1: 6 - 8 tph (160 - 250 kW),

  • RS.R2: 9 - 12 tph (315 kW),

  • RS.R3: 9 - 12 tph (400 kW) for feedstock above 30mm.

​

The storing modules for pellets:

  • RS.D1: Two truck expedition bins, each 40 tons,

  • RS.D2: Big-bag packing unit, 2 containers 15 tons each,

  • RS.D3: Flat storage, designed individually  .

​

Auxiliary equipment

​

Every module has its own set of extra services which make modules fully functional:

​

  • Switch gear, automation system, PLC, LCD,

  • Pneumatic instalation,

  • Supporting constructions,

  • Pipelines, connectors,

  • Mechanical assembly,

  • Electrical assembly + wiring,

  • Supervision over assembly,

  • Commissioning

​

No shipment costs included.

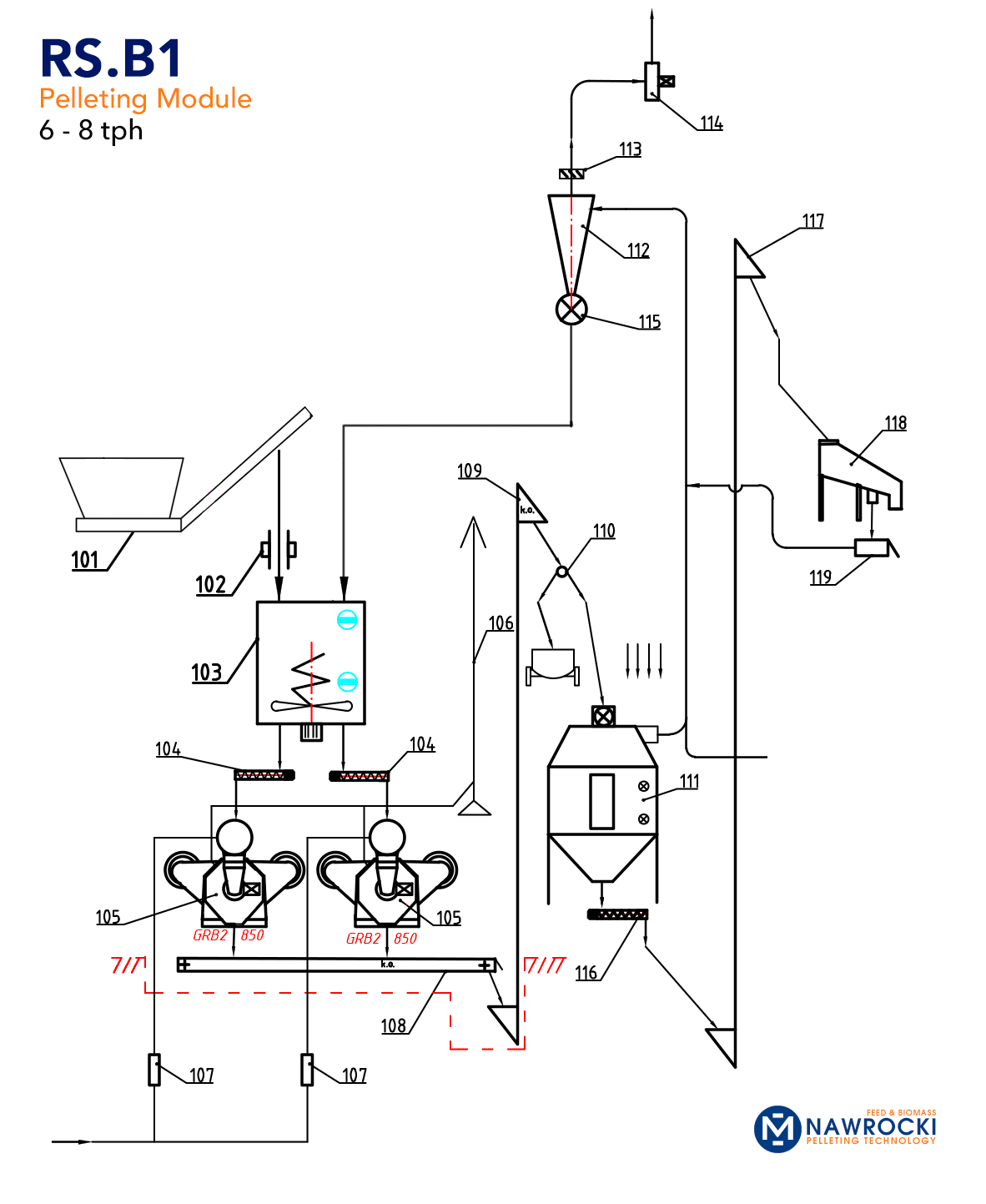

Pelleting Module RS.B1: 6 - 8 tph

​

  • Main feedstock container with feeder,

  • Magnetic separator,

  • Buffering container for 2 pellet mills,

  • Two dozing screws,

  • Two pellet mills 320kW each,

  • Collecting chain conveyor,

  • Counterflow cooler with cyclone, fan, pipes,

  • Vibrating sifter with dust/crumbles return system,

  • Conveyor for pellets container,

  • Automatic control system LCD with switch gear and wiring,

  • Air compressor with air dryer and complete pneumatic installation.


Pelleting Module RS.B2: 9 - 12 tph

​

All parts of RS.B1 Module +

  • Pellet mill (total 3 pellet mills),

  • Mixer with 1 extra dozing screw instead of buffering container,

  • Chain conveyor extension,

  • Bigger counterflow cooler, cyclone and fan.

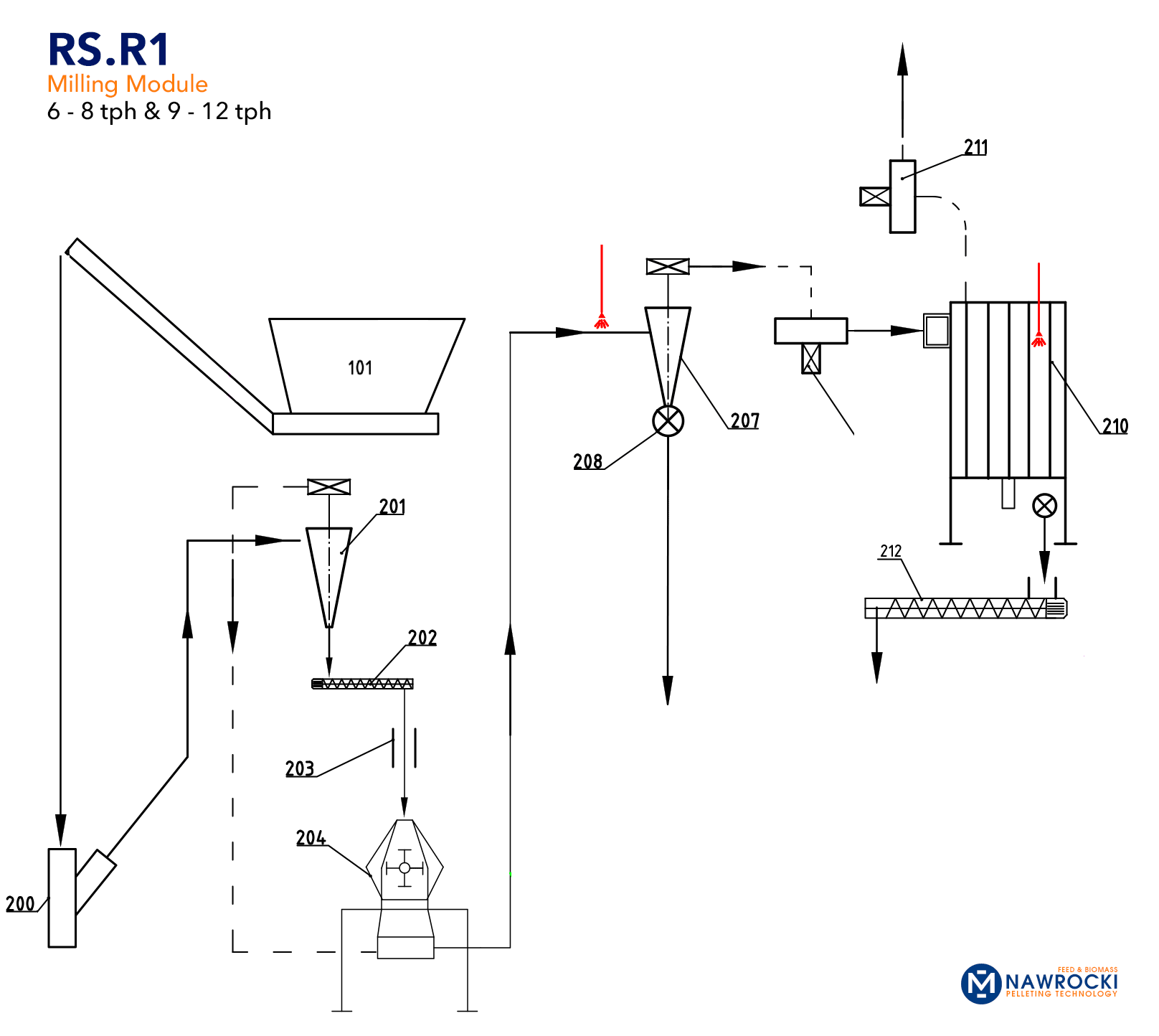

Milling Module RS.Rx: 6 - 12 tph

​

  • Hammer mill with destoner,

  • Pneumatic transport system

  • Cyclone, fan, pipes,

  • Spark detection system,

  • Dust filter with fan,

  • Closed dust return system,

  • Magnetic separator.

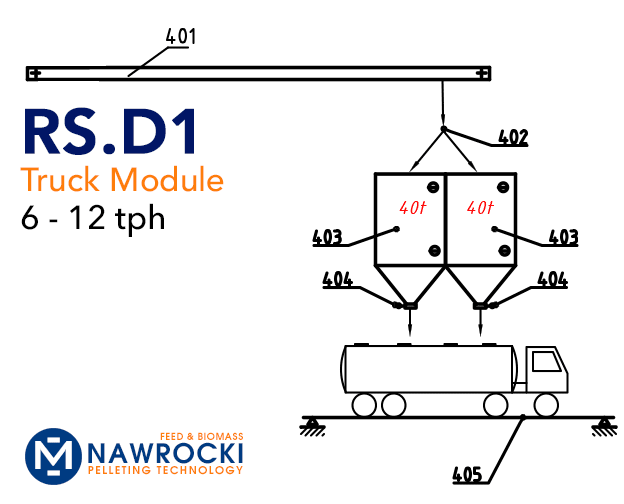

Storage Module RS.D1

Truck Expedition

​

  • Chain conveyor with 2-way distributor,

  • Two pellets silos, 40 tons each, with explosion vent,

  • Truck scale.

Storage Module RS.D2

Big-Bag Loading

​

  • Two-way distributor,

  • Two containers 10 tons each with automatic shut-off by pneumatic locks,

  • Two Big-Bag platform scales.

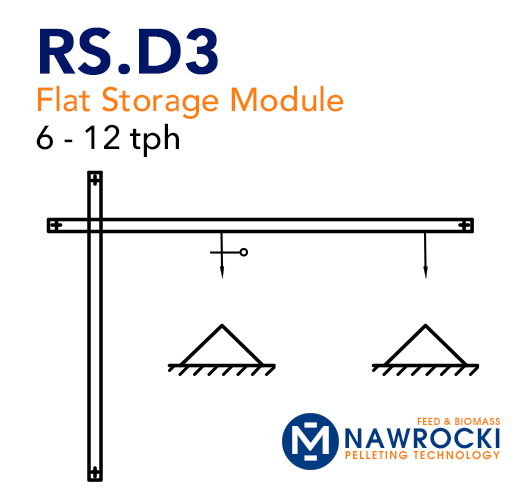

Storage Module RS.D3

Flat Storage

​

  • Two chain conveyors, each 30m,

  • Six pneumatic locks

  • Supporting construction mounted at roof.
